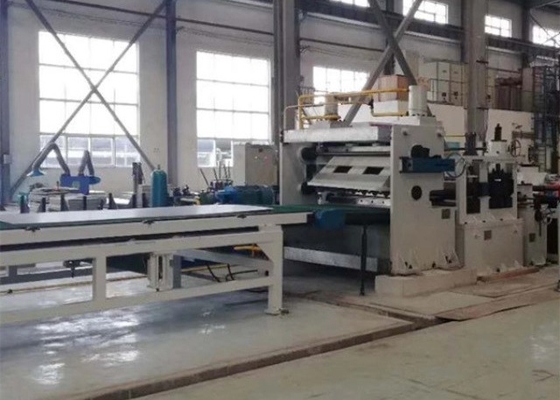

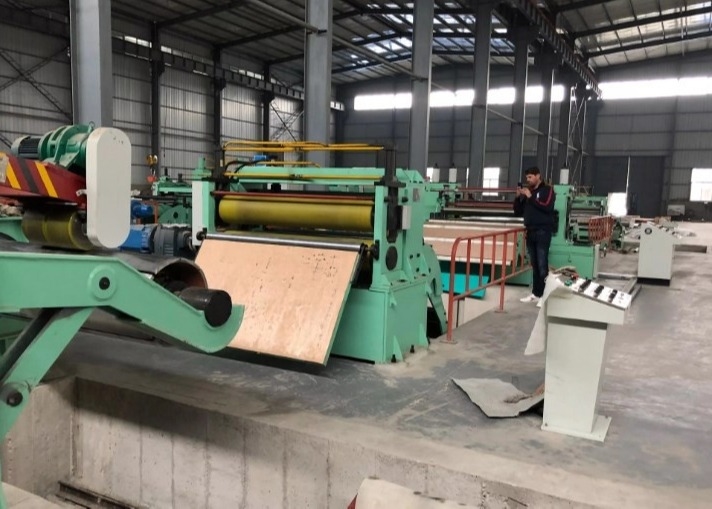

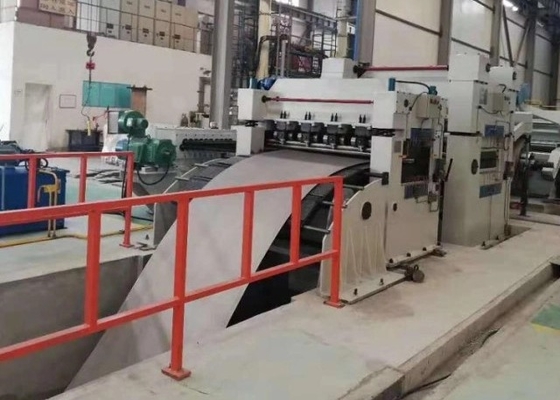

Decoiling Machine Cut To Length Tube Mill Line

Large Image : Decoiling Machine Cut To Length Tube Mill Line

Product Details:

Place of Origin:	china
Brand Name:	JUNXI
Certification:	ce
Model Number:	2200 coil slitting machine

Contact Now

Detailed Product Description

Brand:	Machinery	Customization:	Comprehensive Scheme Customization Of Equipment
Service:	1 Year Warranty	Lead Time:	Est. Time(days) 60
Model Number:	2200 Coil Slitting Machine	Place Of Origin:	China
Highlight:	Cut To Length tube mill line , tube mill line Decoiling Machine , Decoiling Machine tube mill line

Product Description

Are you looking for a high-quality cross-cutting line with outstanding performance?

Tengdi Machinery is an excellent manufacturer of cross-cutting production lines, and can explore cooperation with us. Tendi offers a wide selection of crosscutting machines designed to meet your unique requirements. We can be sure that you will get the crosscutting line option that best suits your needs. Tendi works with skilled experts who contribute their years of experience and guarantee that all of our work is of the highest standard.

Quick Details

Cutting Width (mm):	500 - 2200 mm	Material Thickness(mm):	3 - 12 mm
Cutting Speed(m/min):	1 - 40 m/min	Coil Weight (T):	30T
Leveling Precision(±mm/m):	1.5 ±mm/m	Voltage:	380v
Rated Power:	300KW	Dimension(LWH):	28X8X2m
Weight:	5000	Coil Thickness:	2-8mm
Coil width:	800-2200mm	Coil weight:	max 30T
Total line power consumption:	300KW	Total weight:	50T
Line Speed:	40m/min	Cutting length:	2000mm-12000mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pu

Technical Parameters

Type	3×1600	6×2000	8×2000	10×2200	12×2200	16×2200	20×2500	25×2500
Thickness Range(mm)	0.3-3	1-6	2-8	2-10	3-12	4-16	6-20	8-25
Width Range(mm)	1600	2000	2000	2200	2200	2200	2500	2500
Cutting Length(mm)	300-4000	500-6000	600-8000	600-10000	800-12000	800-12000	800-12000	800-12000
Cutting precision(mm)	±0.5	±0.5	±1	±1	±1	±1	±1	±1
Roller Numbers	15	15	13	13	11	11	9	9
Roller Diameter(mm)	Ф85	Ф140	Ф155	Ф160	Ф180	Ф200	Ф230	Ф260

Decoiling Machine Cut To Length Tube Mill Line 0

Flow chart and product uni

Decoiling Machine Cut To Length Tube Mill Line 2
